BIKER_MISSION_WALL

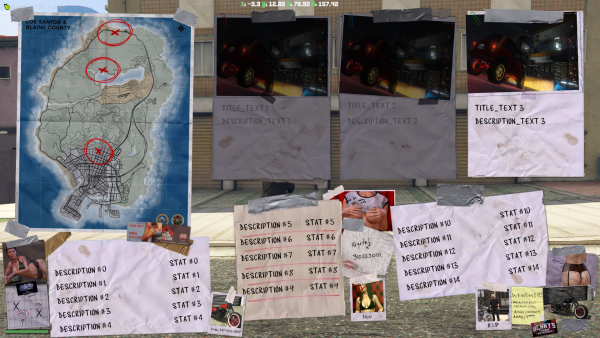

Scaleform used for Mission selection in Biker Clubhouse with DrawScaleformMovie_3d.


BeginScaleformMovieMethod(scaleform, "SET_MISSION")
PushScaleformMovieMethodParameterInt(0) -- Mission index
PushScaleformMovieMethodParameterString("TITLE_TEXT 1") -- Title text
PushScaleformMovieMethodParameterString("DESCRIPTION_TEXT 1") -- Description text
PushScaleformMovieMethodParameterString("nhp_photo_3") -- Image shown above the title. (Needs to be in a txd where the txd and the image have the same name! Example: "nhp_photo_3")
PushScaleformMovieMethodParameterFloat(840.9) -- X coordinate of the red marker on the map
PushScaleformMovieMethodParameterFloat(6491.91) -- Y coordinate of the red marker on the map
EndScaleformMovieMethod()
BeginScaleformMovieMethod(scaleform, "SET_MISSION")
PushScaleformMovieMethodParameterInt(1) -- Mission index
PushScaleformMovieMethodParameterString("TITLE_TEXT 2") -- Title text
PushScaleformMovieMethodParameterString("DESCRIPTION_TEXT 2") -- Description text
PushScaleformMovieMethodParameterString("nhp_photo_3") -- Image shown above the title. (Needs to be in a txd where the txd and the image have the same name! Example: "nhp_photo_3")
PushScaleformMovieMethodParameterFloat(240.9) -- X coordinate of the red marker on the map
PushScaleformMovieMethodParameterFloat(4491.91) -- Y coordinate of the red marker on the map
EndScaleformMovieMethod()
BeginScaleformMovieMethod(scaleform, "SET_MISSION")
PushScaleformMovieMethodParameterInt(2) -- Mission index
PushScaleformMovieMethodParameterString("TITLE_TEXT 3") -- Title text
PushScaleformMovieMethodParameterString("DESCRIPTION_TEXT 3") -- Description text
PushScaleformMovieMethodParameterString("nhp_photo_3") -- Image shown above the title. (Needs to be in a txd where the txd and the image have the same name! Example: "nhp_photo_3")
PushScaleformMovieMethodParameterFloat(50.9) -- X coordinate of the red marker on the map
PushScaleformMovieMethodParameterFloat(120.91) -- Y coordinate of the red marker on the map
EndScaleformMovieMethod()
for i = 0,14,1 do
    BeginScaleformMovieMethod(scaleform, "SET_STAT")
    PushScaleformMovieMethodParameterInt(i) -- Stat index (0 - 14)
    PushScaleformMovieMethodParameterString("DESCRIPTION #" .. i) --Stat description
    PushScaleformMovieMethodParameterString("STAT #" .. i) -- Stat right text
    EndScaleformMovieMethod()
end
BeginScaleformMovieMethod(scaleform, "SET_SELECTED_MISSION")
PushScaleformMovieMethodParameterInt(2) -- Mission index of which mission should be not greyed out / selected
EndScaleformMovieMethod()
BeginScaleformMovieMethod(scaleform, "HIDE_MISSION")
PushScaleformMovieMethodParameterInt(1) -- Mission index of which mission to hide
EndScaleformMovieMethod()

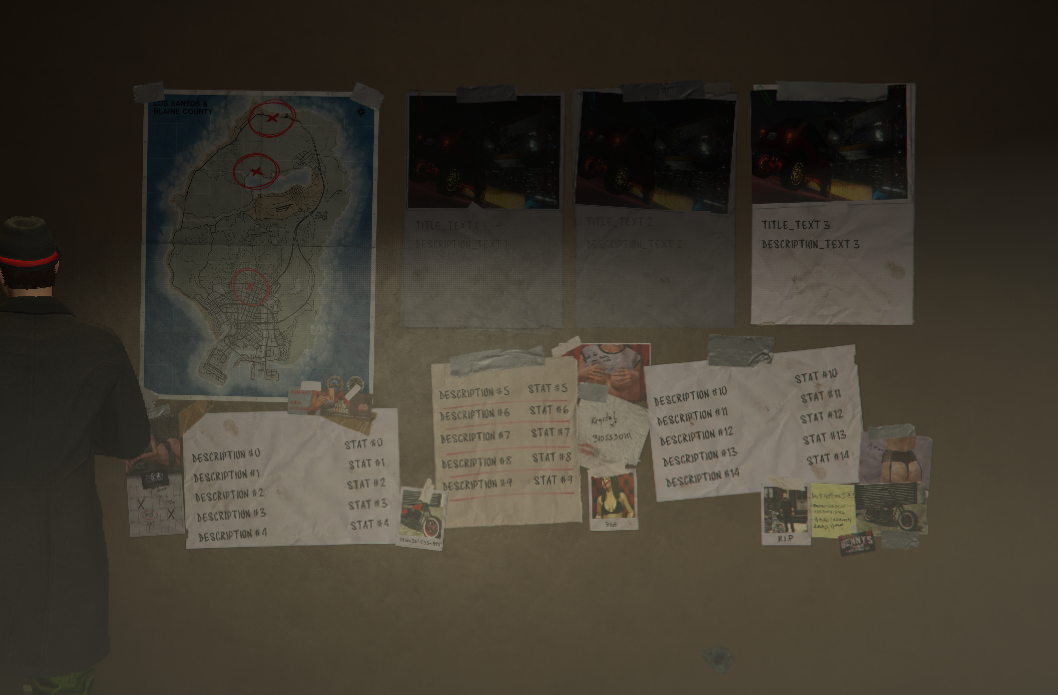

Scaleform cann be drawn fullscreen and in 3D space.

For example: DrawScaleformMovie_3d(scale, 1110.68, -3146.5, -35.8, 180.0, 0.0, 90.0, 0.0, 1.0, 0.0, 2.5, 1.5, 1.0, false) is the somewhat correct position to place it in the clubhouse interior.
